Atosa Steam Table Casters: How to Install Casters on Legs

May 8, 2023

A fixed steam table is great until you need to clean behind it, reset a buffet line or make room for a catering event. That is where Atosa steam table casters come in. Swapping the standard legs and feet for a set of casters turns a stationary hot food table into a unit you can roll where you need it.

This guide explains what the conversion involves, what to prepare, how to do it safely and how to look after the table afterwards. It is written for restaurant, cafeteria and kitchen managers who want a clear, practical overview before they pick up a wrench.

Important: this is general guidance. Always follow the manufacturer's instructions for your exact steam table model and caster kit.

What Is an Atosa Steam Table Leg to Caster Conversion?

Atosa's CookRite electric steam tables, such as the CSTEA-2C, CSTEA-3C and CSTEA-4C, ship with stainless steel tubular legs and adjustable stainless steel feet. The tables are built to stand in one place.

A leg to caster conversion means removing the adjustable feet and fitting casters into the tubular legs instead. Atosa lists a caster set, item CSTEA-2-016, as an optional accessory for these tables. Based on the manufacturer and retailer listings we found, the set includes four 5-inch casters with a 1-1/2 inch expanding stem. An expanding stem is designed to slide into the tubular leg and then lock in place by expanding against the inside of the tube.

You can browse the current range of Atosa electric steam tables and hot food tables to see which models are available.

Why Add Atosa Steam Table Casters?

Moving a steam table is not something most kitchens do every day, but when you need to, casters make a big difference.

Easier cleaning. You can roll the table out and clean the floor, wall and the back of the unit properly.
Flexible layouts. Buffet lines, banquet setups and catering events often need a different arrangement from day to day.
Less lifting. Steam tables are heavy. Atosa lists the net weight of the CSTEA-2C at 64 lbs, the CSTEA-3C at 84 lbs and the CSTEA-4C at 98 lbs, and that is before water pans, food and the extra weight of a full service. Rolling is safer than dragging or lifting.
Better storage. In multi-purpose rooms, a mobile table can be stored away between services.
Faster resets. Staff can reposition the unit without a team of people.

Legs With Feet vs. Casters: A Quick Comparison

Casters are not always the right choice. Use this table to decide what suits your operation.

Feature	Standard Legs With Adjustable Feet	Expanding Stem Casters
Mobility	Fixed position	Easy to roll and reposition
Stability during service	Very stable, feet can level the table	Stable only if the locking casters are engaged
Leveling on uneven floors	Feet adjust to level the table	Less precise, floor must be fairly flat
Cleaning access	Must lift or slide the table	Roll it out of the way
Table height	Standard	Increases, so measure before you convert
Best for	Permanent buffet lines and fixed stations	Catering, banquet, shared or flexible spaces

The main trade-off is height and stability. Always check that the new table height still works for your servers and your guests, especially on a self-serve line.

Before You Start: Preparation and Tools

A little preparation avoids most problems. Do these things first.

Confirm You Have the Right Kit

Check your model number on the rating plate.
Confirm with the manufacturer or your supplier that the caster kit is listed for your table. Atosa lists CSTEA-2-016 as an optional accessory on the CSTEA-2C and CSTEA-4C pages. If you own a CSTEA-3C or another CSTEB model, verify compatibility before buying.
Check that you received four casters and that the stem size is 1-1/2 inch expanding stem, as described in the listing.
Look at whether the set includes locking casters. Some sellers describe two locking and two swivel casters, but contents can vary, so check what is in your box.

Gather Your Tools

Adjustable wrench or the wrench size listed in the caster instructions
Screwdriver or hex key if your kit requires one
Work gloves
Clean towels or a protective blanket for the floor
Level (optional, but helpful for checking the finished table)
A helper

Prepare the Table and the Space

Empty the table of pans, utensils and any items on the undershelf.
Drain and dry the water pans and wells.
Clear a flat, open area to work in.
Keep the new caster set nearby, and lay out the parts so none go missing.

Safety Tips Before You Begin

Steam tables combine electricity, water and heavy stainless steel, so treat the job carefully.

Turn all controls off and unplug the table. Do not just turn the knobs off. Remove the plug from the outlet.
Let the table cool completely. Heating elements and wells can stay hot for a while after use.
Make sure the table is dry. Standing water and electrical equipment do not mix.
Wear gloves. Stainless steel edges can be sharp.
Use a helper to tilt or lift the table. Never try to lift one end alone, even on a smaller two-well model.
Never work under a table that is only held up by one person. Support the unit securely while you are changing legs.
Keep the cord out of the way so no one trips on it while you are working.

Step-by-Step: How to Install Casters on an Atosa Steam Table

The exact process depends on your table and kit, so treat this as a general outline and always compare it with the manufacturer's instructions.

Step 1: Power Off, Unplug and Let the Table Cool

Switch every well control to off, unplug the unit and wait until all surfaces are cool to the touch.

Step 2: Empty and Clear the Table

Remove water pans, food pans, cutting board items and anything stored on the undershelf. A lighter table is easier and safer to handle.

Step 3: Safely Raise One Side of the Table

With a helper, carefully tilt or raise one end of the table so the legs on that side are off the floor. Place the table on a stable support if needed, and keep fingers clear of pinch points.

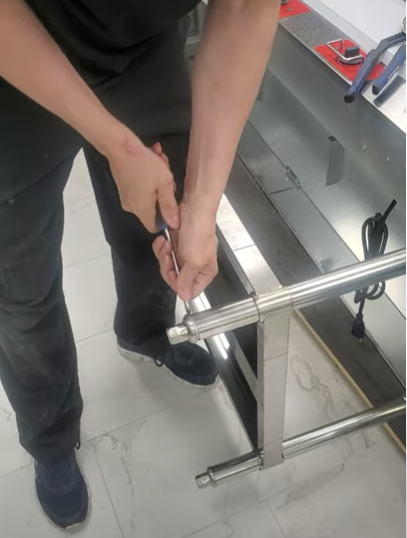

Step 4: Remove the Adjustable Feet

Take off the adjustable stainless steel feet from the legs on the raised side, following the method in your manual. Keep the feet in a labeled bag in case you ever want to convert the table back.

Step 5: Inspect the Legs

Look inside the tubular legs before you insert anything. Check for dents, burrs or debris. Wipe out any dust or dirt so the stem can seat properly. Do not force a caster into a damaged or crushed leg.

Step 6: Insert and Secure the Caster Stems

Slide the expanding stem of each caster into the leg. Tighten the stem as directed in your kit instructions so it expands and grips the inside of the tube. The casters should not wobble or twist inside the leg. Repeat for the second leg on that side.

Step 7: Repeat on the Other Side

Carefully lower the table, then raise the opposite end and repeat steps 4 through 6.

Step 8: Lower the Table and Check Stability

With all four casters installed, lower the table to the floor. Push gently from different directions to check that nothing shifts or wobbles. If your set includes locking casters, test the brakes.

Step 9: Re-Check Height and Level

Measure the new table height and see how it works with your serving setup. If you use a sneeze guard or overshelf, make sure it is still positioned correctly. Atosa lists overshelf models for its steam tables, so check the manufacturer's information before adjusting anything.

Step 10: Restore the Setup and Test

Put the water pans, wells and accessories back, reconnect power and run a normal heat-up. Watch that the table stays stable and that the cord has enough slack but is not stretched or pinched.

Common Mistakes to Avoid

Not confirming the caster kit fits your model. Always check compatibility first.
Skipping the power-off and unplug step. This is a basic safety rule for any electric equipment.
Working alone. Even smaller steam tables are awkward to tilt safely.
Forcing a stem into a damaged leg. A dented tube can cause a loose or unsafe fit.
Not tightening the stem properly. A loose caster can wobble or work free.
Forgetting the brakes during service. A table that rolls during a busy buffet is a hazard.
Ignoring the new height. Casters raise the table, so check serving height and any attached shelving.
Moving the table with hot water or food on it. Always empty, cool and unplug first.
Letting the power cord drag. A pulled or pinched cord can be damaged or become a trip hazard.

Daily Use Tips for a Mobile Steam Table

Once your table is on casters, a few habits keep it safe and reliable.

Lock the casters when the table is in position. If your kit includes locking casters, engage them every time you stop.
Unplug before you move the table. Never roll it with the cord still connected to the wall.
Move it empty. Remove water pans and food before repositioning.
Roll slowly over thresholds. Gaps, mats and uneven floors can catch small wheels.
Keep the path clear. Check for floor drains, cords and hoses before you move the unit.
Use two people for longer moves. One to steer and one to manage the cord and watch the path.

If you are planning a larger buffet area, it also helps to read our guide on how to install casters on legs for general principles that apply to other equipment too.

Maintenance and Care

Casters add convenience, but they also add moving parts that need attention.

Check the Casters Regularly

Every few weeks, inspect each caster for looseness, damage or buildup. Make sure the stems are still tight in the legs and that the wheels spin freely.

Clean Around the Wheels

Hair, string, grease and food debris can wrap around wheels and axles. Remove debris when you clean the floor, and wipe the wheels and brakes with a suitable cleaner.

Test the Brakes

If your casters have brakes, test them often. A brake that no longer holds should be repaired or replaced before the table goes back into service.

Keep the Table Itself Clean

Clean the wells, undershelf and stainless surfaces according to the manufacturer's instructions. Do not spray water into the electrical controls, and let everything dry before you plug the table in.

Keep Spare Parts Handy

If a caster gets damaged, replacing it quickly keeps the table safe to use. Our article on OEM parts from Atosa, UNOX, True, Turbo Air and AMPTO explains why genuine parts are worth stocking.

Frequently Asked Questions

Can I add casters to any Atosa steam table?

Not necessarily. Atosa lists the CSTEA-2-016 caster set as an optional accessory on its CSTEA-2C and CSTEA-4C product pages. For any other model, confirm compatibility with the manufacturer or your supplier before buying.

What size are the Atosa steam table casters?

Listings for the CSTEA-2-016 set describe four 5-inch casters with a 1-1/2 inch expanding stem. Always check the details on the kit you receive.

Do the casters have brakes?

Some sellers describe the set as having two locking and two swivel casters, but descriptions vary. Check your kit when it arrives, and use any available brakes whenever the table is in position.

Will casters change the height of my steam table?

Yes, you should expect the table to sit higher once casters replace the adjustable feet. Measure the new height and check it against your serving setup and any overshelf or sneeze guard.

Do I need special tools for the conversion?

Usually basic hand tools are enough, such as a wrench and possibly a screwdriver or hex key. Check your kit instructions for the exact tools required.

Is it safe to move a steam table with food in it?

No. Empty the water pans and food, unplug the table and let it cool before moving it. Moving a loaded or hot table risks spills, burns and tipping.

Can I go back to the original feet later?

If you keep the original adjustable feet, you can usually reverse the process by removing the casters and refitting the feet. Follow the manufacturer's instructions for your model.

Final Thoughts

Atosa steam table casters are a simple upgrade that can make a big difference to cleaning, layout changes and daily workflow. With the right kit, a few basic tools, a helper and a careful approach to power and safety, most kitchens can complete the conversion in a short time.

Check compatibility first, confirm the new table height, lock the casters during service and keep an eye on wear. Then you will have a hot food table that is as flexible as your kitchen needs it to be.

Want to see the process in action? Watch the original video from https://www.youtube.com/watch?v=ijbZri_RwAU
